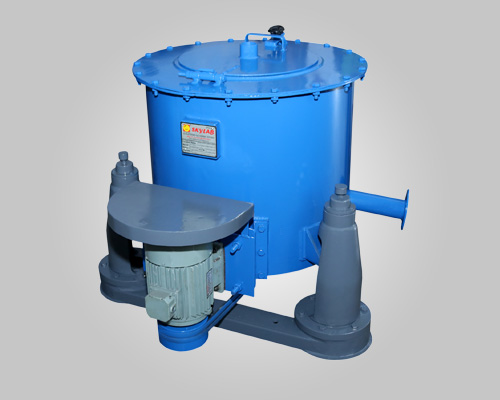

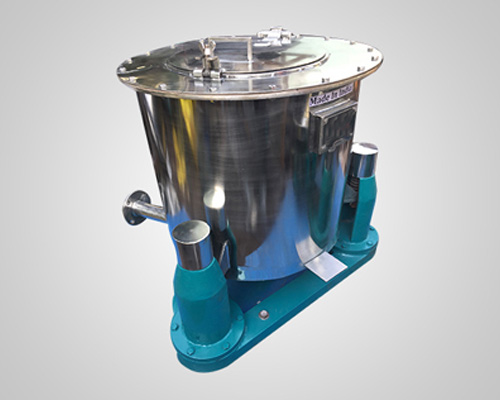

Hydro Extractor that we brought forward is engineered to be used for drying a lots of materials or for separating the wet material from dry material. Widely used in textile industry, such equipment rotates at enormous speed which can be adjusted for needed operational fluency. Having compact size, ergonomic design, sturdy construction and dimensional accuracy, this can be installed and operated easily. The Hydro Extractor is made of graded stainless steel and hi-tech components that make it durable enough to use many years without any hassle.
| MODEL | SS-12 | SS-24 | SS-36 | SS-48 | SS-60 |
| Basket dia. (mm) | 305 | 610 | 915 | 1225 | 1524 |
| Basket Ht. (mm) | 175 | 325 | 470 | 470 | 550 |
| Basket Speed (rpm) | 1500-2000 | 1000-1200 | 900-1000 | 800-850 | 700-800 |
| Max permissible load on Basket (Kg) | 12 | 70 | 200 | 350 | 500 |
| Motor (HP) | 1 | 3 | 7.5 | 12.5/15 | 15/20 |
| Vol. underlip (Ltrs.) | 12 | 50 | 200 | 295 | 445 |
| Centrifuge Force | 682 | 668 | 537 | 552 | 545 |
| Filtration Area (Sq. mtr.) | 0.192 | 0.590 | 1.310 | 1.750 | 2.430 |
